5145 Reading & Writing 10cm

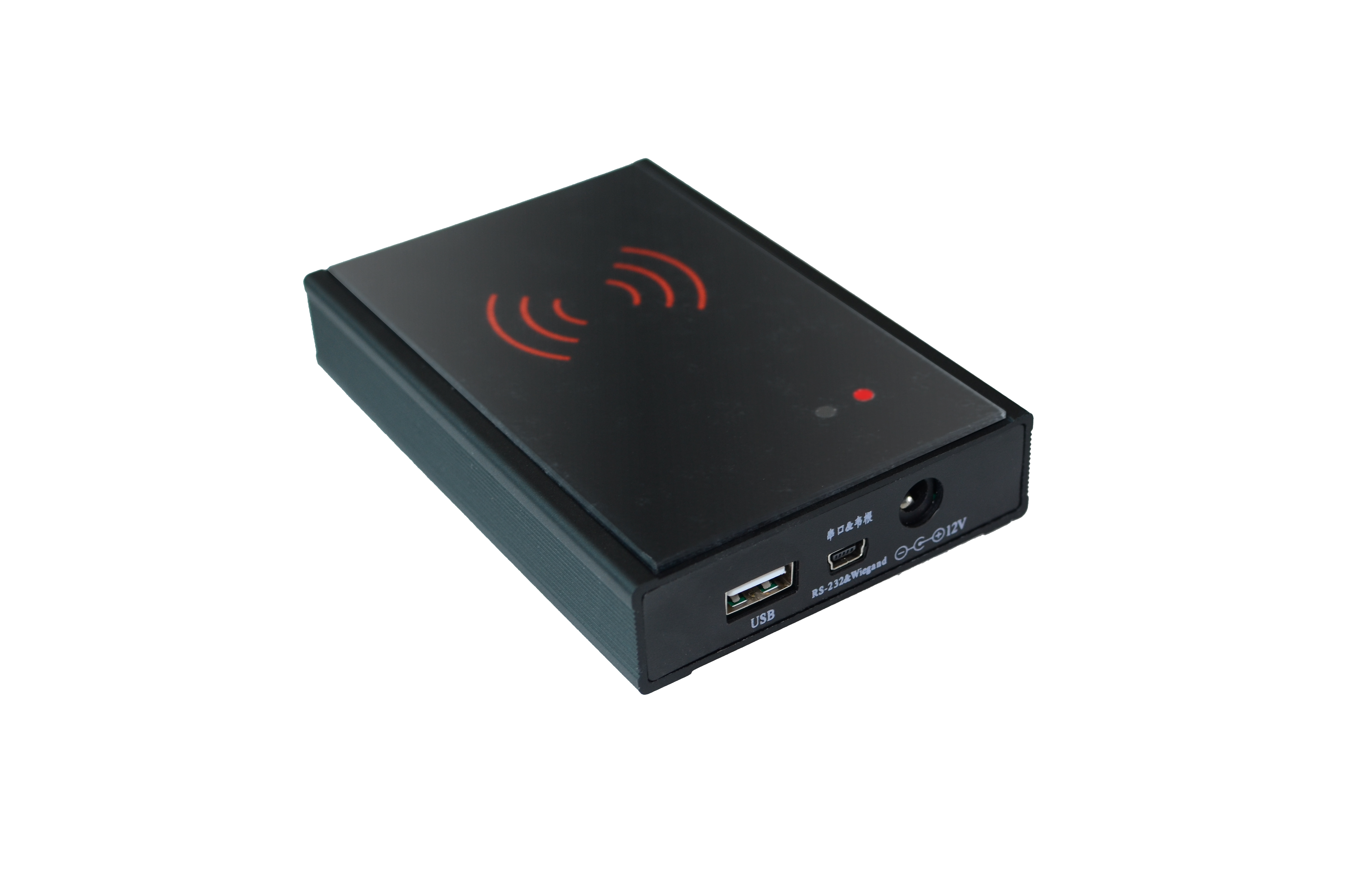

Hawkvor UHF reader 5145 is a mini desktop reader, it is designed mainly for short range identification, for example, it can be used to initialize labels or to authorize labels.

It uses metal frame and directional antenna to assure the reading range is just 10-20 cm on the above direction.

This reader is also equipped with multiple communication interfaces and USB port is accepted.


Reading range: 0.1-0.2meters.

Humanity design:beep and light double prompt.

Stable performance: the core modules has been widely used in the industrial environment for more than10 years.


Frequency: 902~928 MHz(FCC Part 15)/865.6~867.5 MHz(ETSI)/920~925MHz(China)

/Other Regional Regulation

Supported Protocols: EPC C1 Gen2(ISO18000-6C)

RF Power :10~27DBm

Interface: Wiegand 26/34,RS232 or RS485


Read Range: 10~20cm ,(using with 5510FP5 tag)

SupplyPower: + 10~+ 26 V DC/3A

Operating Temperature:-20°C~ +70°C

Storage temperature: - 40 °C~ +85°C

Physical Parameters:

NW: 0.2kg

GW: 0.7kg

Unit size: 120x80x20mm

Packing size: 255x 180 x 60 mm
